Brick Making Machinery Clay Fired Brick Chain-Board Rapid Drying Equipment

Chi tiết sản phẩm

Nguồn gốc: Trung Quốc

Hàng hiệu: Brictec

Chứng nhận: CE ISO

Số mô hình: BRICTEC

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu: 1 bộ

Giá bán: USD 1409000--705000

chi tiết đóng gói: tùy chỉnh

Thời gian giao hàng: 180 ngày

Điều khoản thanh toán: L/C, T/T

Khả năng cung cấp: tùy chỉnh

Nhận được giá tốt nhất
Làm nổi bật:
Điện áp:
220V/380V, 380V, 220V, 220V/50Hz, 380V 50Hz ba pha (tùy chọn)
Điều kiện:
Mới
Bảo hành:
1 năm
Loại:
Máy sấy nhanh
Kích thước ((L*W*H):
tùy chỉnh
Vật liệu:
Đất sét đất trái đất
tên:
Máy sấy khô
Tính năng:
Hiệu quả cao
Điện áp:
220V/380V, 380V, 220V, 220V/50Hz, 380V 50Hz ba pha (tùy chọn)
Điều kiện:
Mới
Bảo hành:
1 năm
Loại:
Máy sấy nhanh
Kích thước ((L*W*H):
tùy chỉnh
Vật liệu:
Đất sét đất trái đất
tên:
Máy sấy khô
Tính năng:
Hiệu quả cao
Brick Making Machinery Clay Fired Brick Chain-Board Rapid Drying Equipment

Product Description

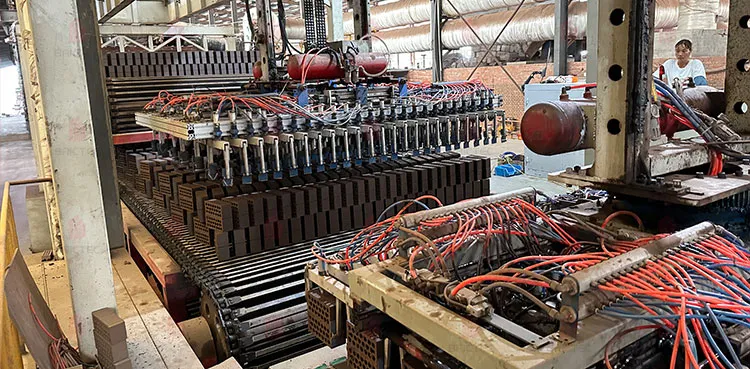

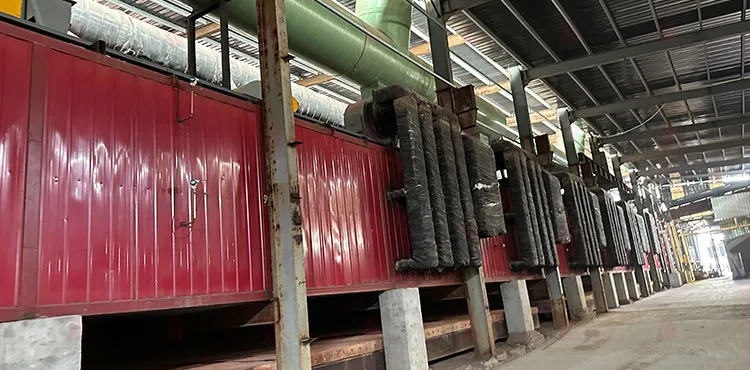

Brick Making Machinery Clay Fired Brick Chain-Board Rapid Drying Equipment 0

Equipment Introduction:

Clay Fired Brick Chain-Board Rapid Drying Equipment is a modern drying solution suitable for the production of various fired brick products, including solid bricks, perforated bricks, load-bearing blocks, and more. It uses a chain-board conveying system to transport brick blanks smoothly through the drying tunnel, achieving rapid dehydration through a hot air circulation system.

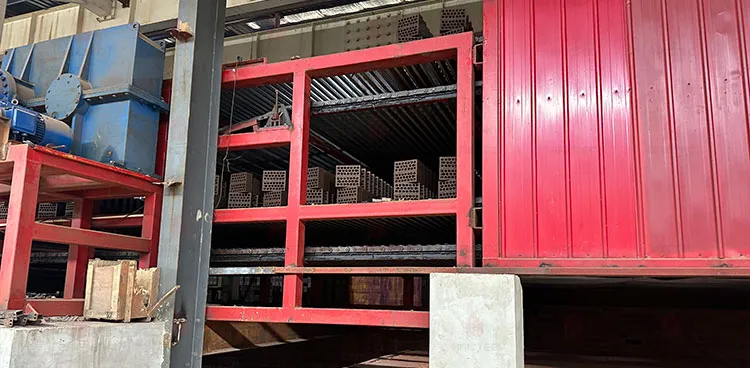

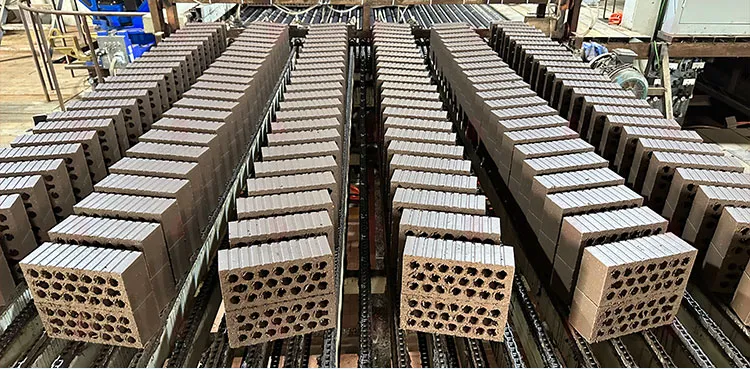

Brick Making Machinery Clay Fired Brick Chain-Board Rapid Drying Equipment 1

Features and Advantages:

1.High-Efficiency Drying:The equipment uses a multi-point air supply and dehumidification system, which can quickly reduce the moisture content of the brick blanks to the desired level.

2.Uniform Drying:Through optimized air duct design, it ensures uniform heating of the brick blanks during the drying process, reducing cracking and deformation.

3.High Degree of Automation:The equipment can automatically record the optimal drying regimes for different raw materials and products, facilitating subsequent production.

4.Energy-Saving:It uses the residual heat from the brick firing kiln for drying, improving thermal efficiency and reducing energy consumption.

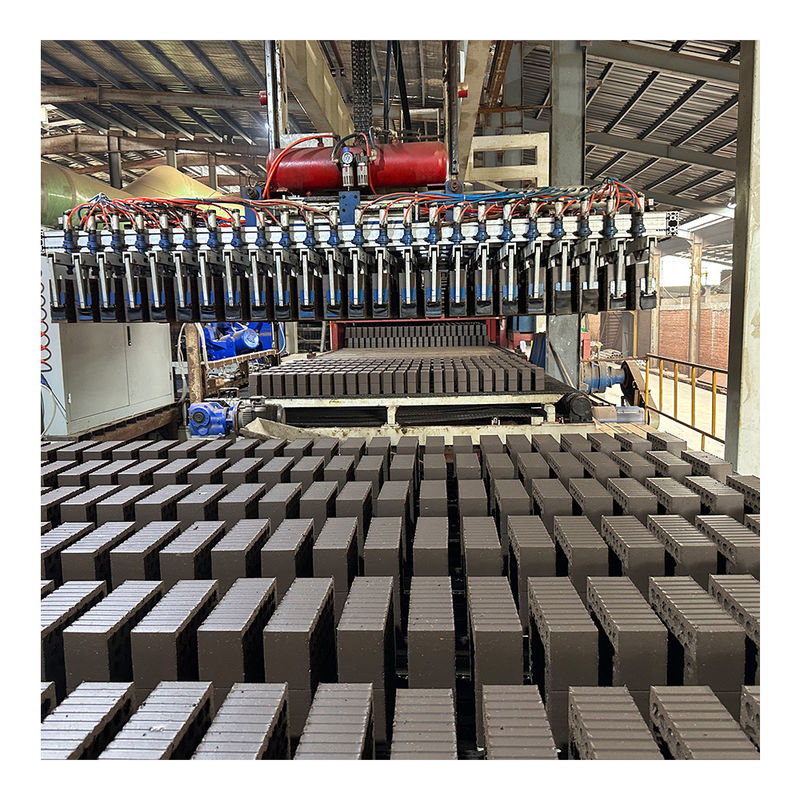

Brick Making Machinery Clay Fired Brick Chain-Board Rapid Drying Equipment 2

Cutting Characteristics:

Chain-Board Rapid Drying Equipment is not only suitable for clay fired bricks but also for drying other high-moisture, high-plasticity materials. The equipment can adjust drying parameters according to different production needs.
Cutting Efficiency:

The equipment significantly improves drying efficiency through optimized drying curves and air duct design. For example, in a tunnel kiln with a daily output of 250,000 bricks, the chain-board rapid drying equipment is 510,000 yuan higher than the traditional single-burn process, with only a 5.3% increase in cost.

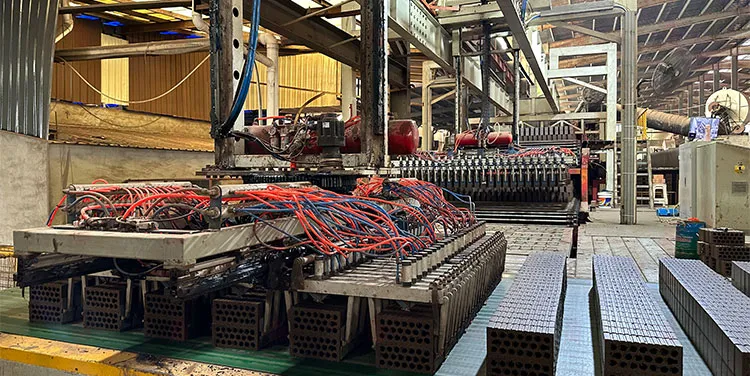

Brick Making Machinery Clay Fired Brick Chain-Board Rapid Drying Equipment 3

Advantages in Clay Fired Brick Production:

1. Improved Product Quality:Rapid drying reduces cracking and deformation of brick blanks during the drying process, improving product quality.

2. Reduced Production Costs:By saving energy and optimizing processes, it reduces energy consumption and defect rates in production.

3. Enhanced Production Flexibility:The equipment can adjust drying parameters according to different brick types and specifications, meeting diverse production needs.
Servo Motor:

Although the chain-board rapid drying equipment mainly relies on a hot air circulation system, servo motor technology may be involved in some automated control processes to precisely control conveying speed and drying parameters.



Adjustable Conveying System:

The chain-board conveying system of the equipment can be adjusted according to the size and shape of the brick blanks. By changing the spacing and speed of the chain boards, it ensures that brick blanks of different specifications can pass through the drying tunnel smoothly.

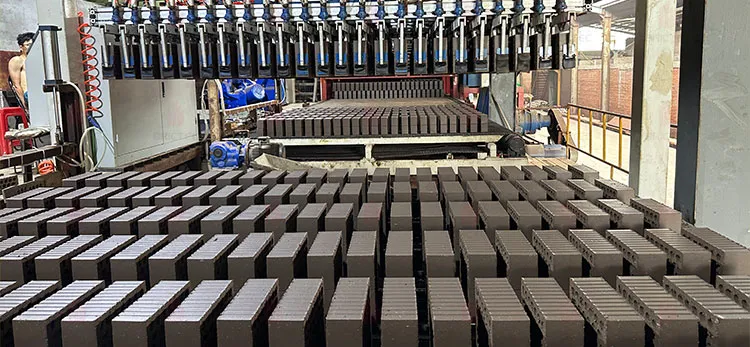

Brick Making Machinery Clay Fired Brick Chain-Board Rapid Drying Equipment 4



Flexible Drying Parameter Settings:

The equipment is equipped with an advanced control system that allows operators to adjust drying parameters such as temperature, air speed, and air volume according to the type, size, and initial moisture content of the brick blanks. This flexibility ensures that brick blanks of different specifications can be dried under optimal conditions.
Multi-Point Air Supply and Dehumidification System:
The equipment uses a multi-point air supply and dehumidification system that can flexibly adjust the position and air volume distribution of the air ducts according to the arrangement of the brick blanks and drying requirements. This helps ensure uniform heating of the brick blanks during the drying process, reducing the risk of uneven drying due to different specifications.

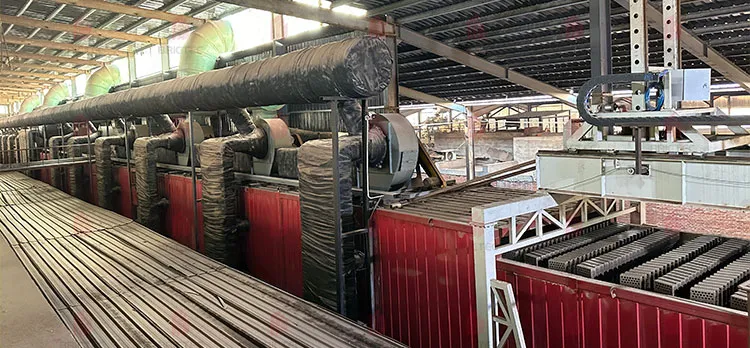

Brick Making Machinery Clay Fired Brick Chain-Board Rapid Drying Equipment 5



Modular Design:
The equipment is designed with a modular approach, allowing for the addition or removal of drying modules according to production needs. This design not only enhances the flexibility of the equipment but also enables optimized configuration based on the specifications and production volume of the brick blanks.
Brick Making Machinery Clay Fired Brick Chain-Board Rapid Drying Equipment 6

Automated Control System:

The automated control system of the equipment can monitor and adjust various parameters in real-time during the drying process. With preset drying curves and intelligent algorithms, the equipment can automatically adapt to the drying needs of brick blanks of different specifications, ensuring consistent drying results.Brick Making Machinery Clay Fired Brick Chain-Board Rapid Drying Equipment 7Brick Making Machinery Clay Fired Brick Chain-Board Rapid Drying Equipment 8
